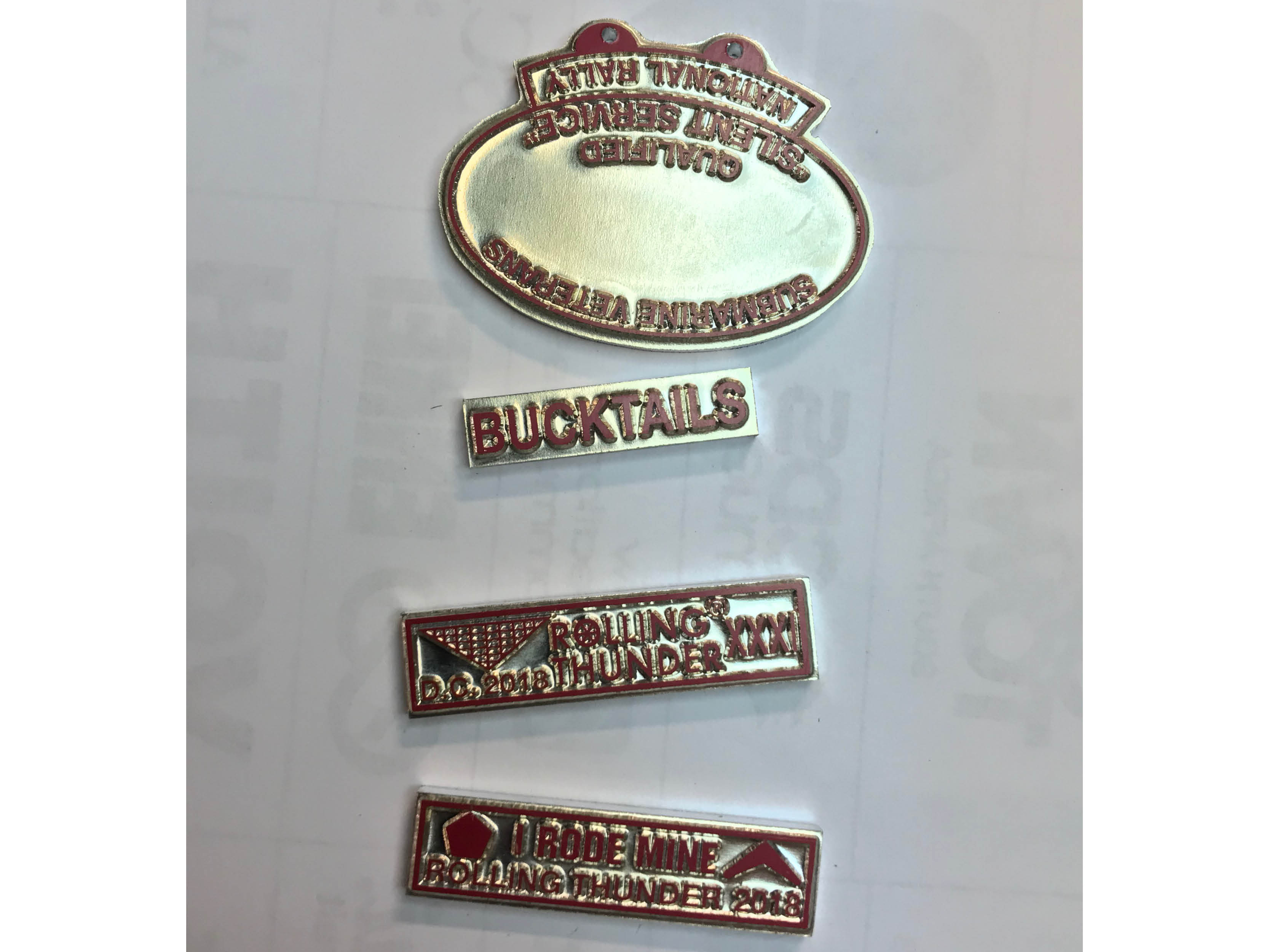

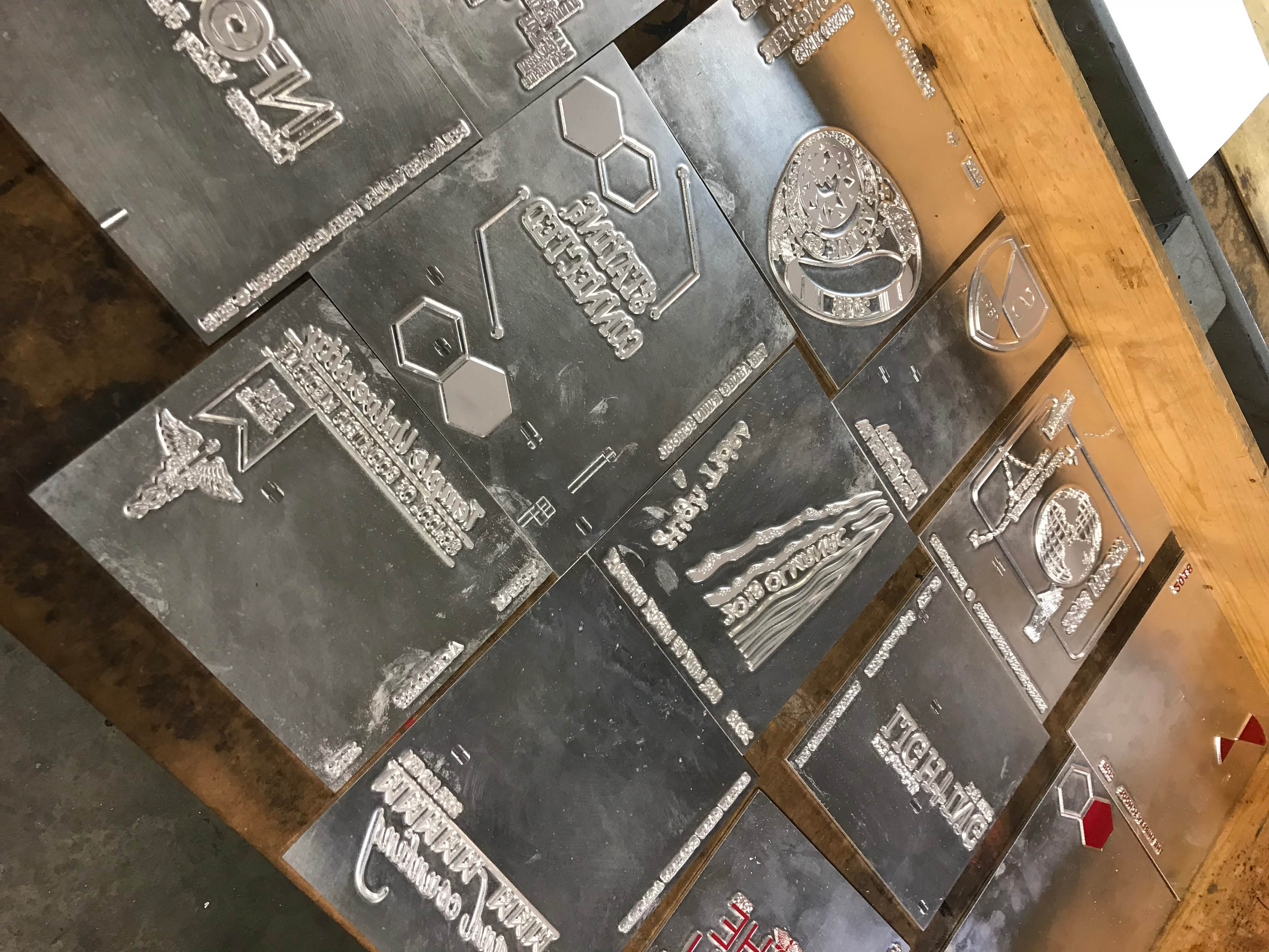

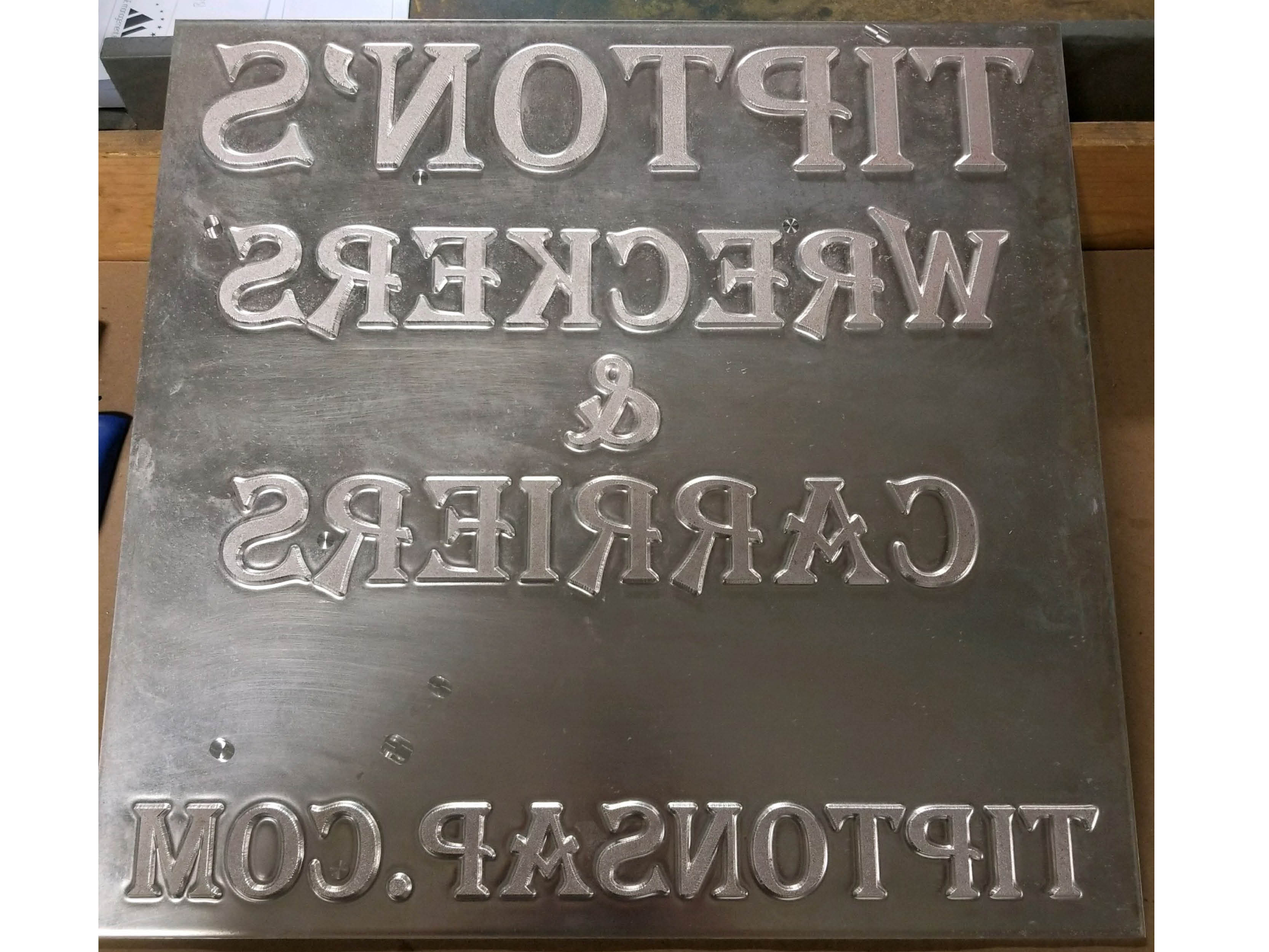

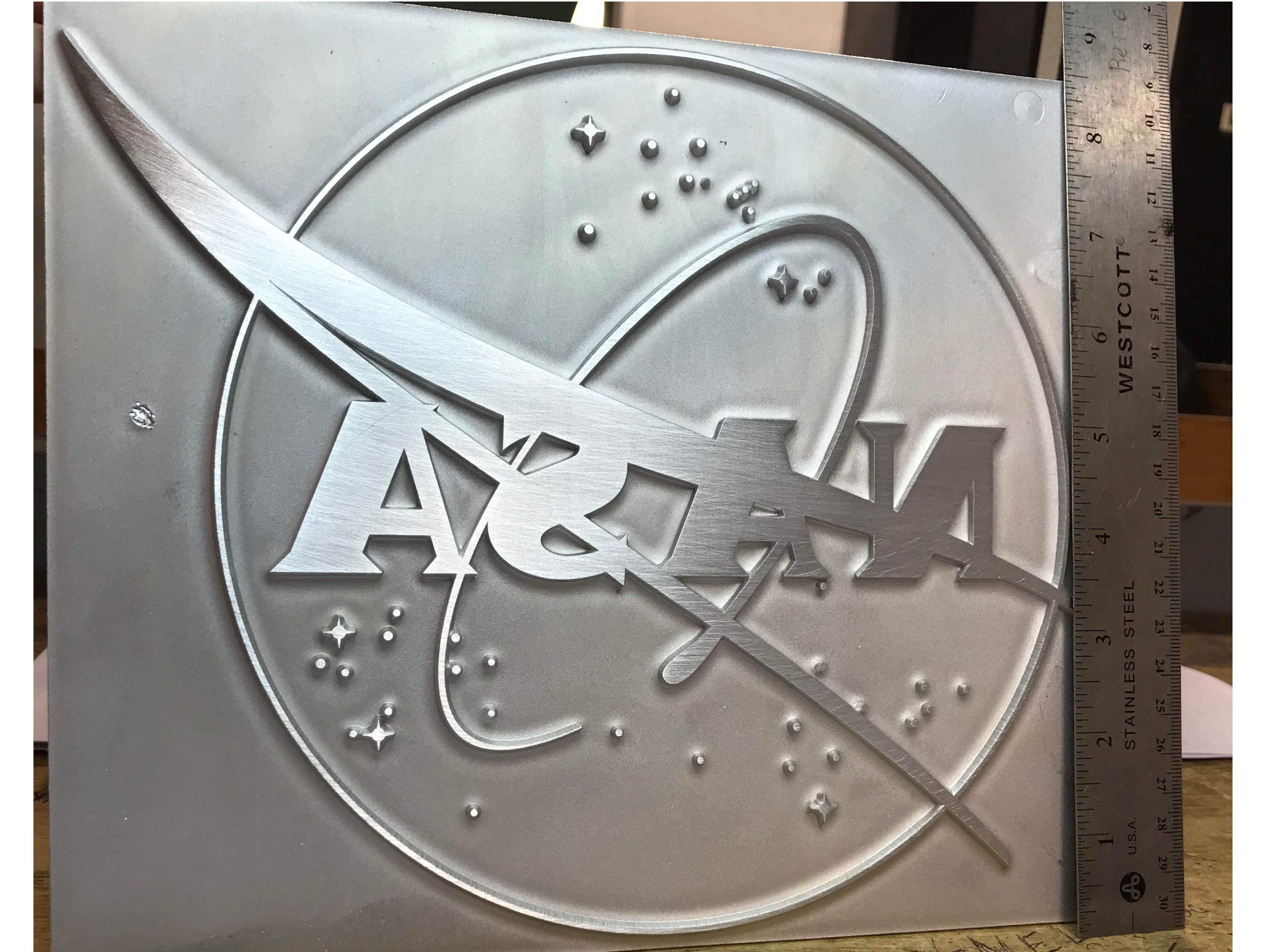

MAGNESIUM DIES

Photoetched magnesium dies can be used in a variety of applications and are very cost effective and timely. Applications commonly used for Magnesium dies include:

• Hot stamping
• Foil stamping
• Debossing and embossing
• Letterpress printing
• Jewelry molds
• Molds masters for rubber stamps

Magnesium dies work best with graphic applications, on flexible materials where the finished product should have an embossed appearance. Magnesium is often best used on smaller areas with a smooth texture

Thickness	Applications
.080	Magnesium dies typically for foil/hot stamping Rubber stamp molds (masters)
.064, 16 gauge	Magnesium dies for foil/hot stamping, debossing, embossing letterpress applications. Rubber stamp molds (masters)
.153, 11pt	Magnesium dies are used in foil/hot stamping, debossing, embossing Rubber stamp molds (masters) Halftone applications.
.250, 1/4"	Magnesium dies used in foil/hot stamping, debossing, embossing, molds Rubber stamp molds (masters) Halftone applications. Note: 1/4" magnesium dies can be etched extra deep.
.375, 3/8"	Magnesium dies ideal for debossing soft goods such as leather and/ vinyl products.
.918	Letterpress dies, typically magnesium dies mounted on wood to an industry standard.

All thicknesses of magnesium dies can be mounted to wood or aluminum.

At Accurate Marking & Manufacturing most orders received by 10:00am eastern time will ship the same day, next day at the latest.

To learn more about Accurate Marking and Manufacturing magnesium die production capabilities or obtain a quote, contact us today. You can send us your .eps, .ai or .igs, as well as, various other files to expedite the process.
